With features like high-load piston design, heavy wall tubing, and induction-hardened, chrome-plated rods, Yates solid mill duty hydraulic cylinders are built tough to keep on performing. These heavy duty hydraulic cylinders are engineered to be nearly indestructible in the harshest and most extreme environments, which is when they're at their best.
Bore Sizes From 2" – 40+" Max. Operation 3,000 PSI
Precision machined steel head and cap provides close concentricity and accurate alignment between piston, tube, piston rod and rod bearing.

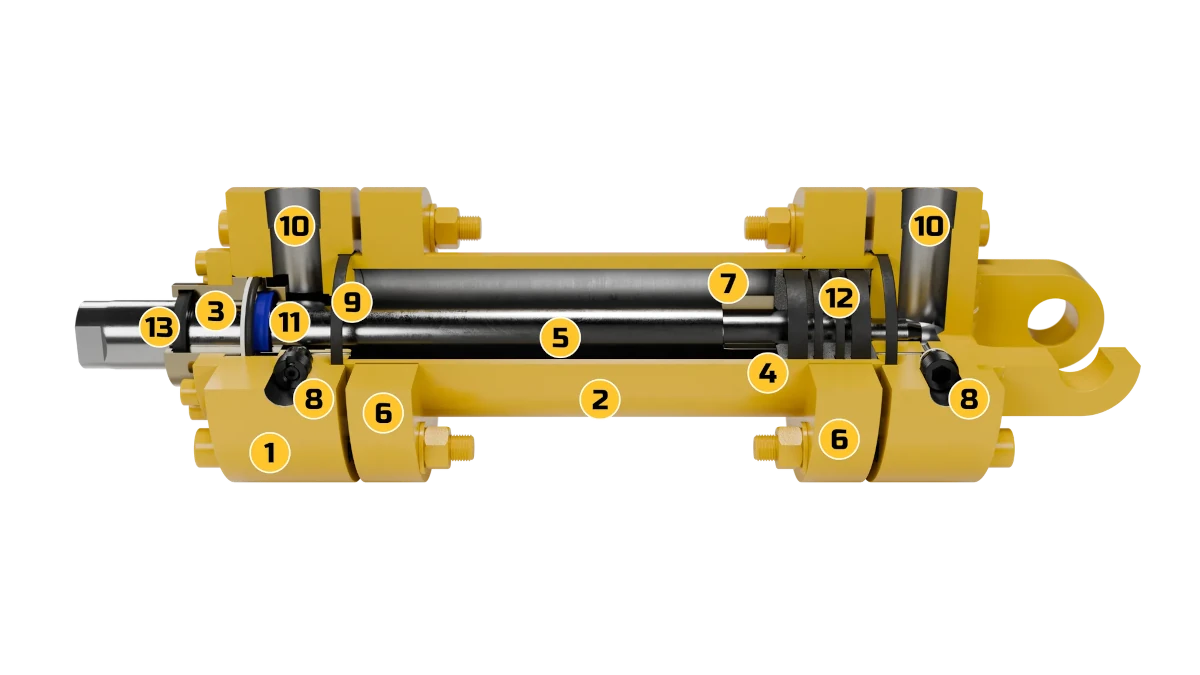

2. Hydraulic Cylinder Barrel
Damage resistant, heavy wall steel tubing, honed to 16-20 micro finish for low frictional drag and maximum seal and piston bearing life. Chrome plated ID is also available.
3. Rod Cartridge
Extra long, high strength bronze gland provides maximum bearing support and wear resistance. A removable retainer allows for gland removal without cylinder disassembly.
4. Hydraulic Piston
One piece ductile iron piston provides maximum strength and protection against shock loads. Anaerobic adhesive is used to permanently lock and seal piston to rod on 6″ bore and smaller. Piston is o-ring sealed and mechanically locked on bores over 6″. Steel bronze overlay is also available.
5. Piston Rod
High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1″ through 4 1/2″ diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available.
6. Body Flanges
One piece ductile iron piston provides maximum strength and protection against shock loads. Anaerobic adhesive is used to permanently lock and seal piston to rod on 6″ bore and smaller. Piston is o-ring sealed and mechanically locked on bores over 6″.
7. Cushions
Available on all bore sizes. Head cushion sleeve and rear cushion spear are machined to close tolerances to provide gradual deceleration and reduced shock at end of stroke.
8. Cushion Needle Adjustment and Ball Check
Captive cushion adjustment allows for safe cushion adjustment under pressure. Special tip design and fine threads allow for precise adjustment over a broad range of operations. Ball check allows for fast break-away under full power.
9. Tube End Seal
High durometer o-rings and back-ups insure leak-free service.
10. Ports
SAE O-ring ports are standard and can be rotated to any 90° position. NPTF ports are available at no extra charge.
11. Mill Duty Hydraulic Rod Seal
Twin lip urethane rod seal is pressure energized and wear compensated for long, leak-free service.
12. Piston Seals
Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.
13. Rod Wiper
Double lip wiper acts as a secondary seal while keeping out dirt, dust and other contaminants. Metallic scrapers and low friction wipers are also available.
24/7 Cylinder Repair
Profit-robbing breakdowns don’t always happen to your mill duty hydraulic cylinders or custom mill duty hydraulic cylinders during business hours. That’s why Yates cylinders expert repair team is available 24 hours per day, 365 days per year to handle your heavy duty mill duty cylinder repair. Yates Industries offers the following:
Industrial hydraulic cylinder repairs that stand up to your original specs
When we say 24/7, we mean it
Competitive Pricing
Quick delivery and expediting
ISO 9001:2015 certified
Warranty on all cylinder repairs
Industrial hydraulic cylinder rebuild or replacement
